CRI Centrifugal Pump
Price range: R9469,39 through R30954,26

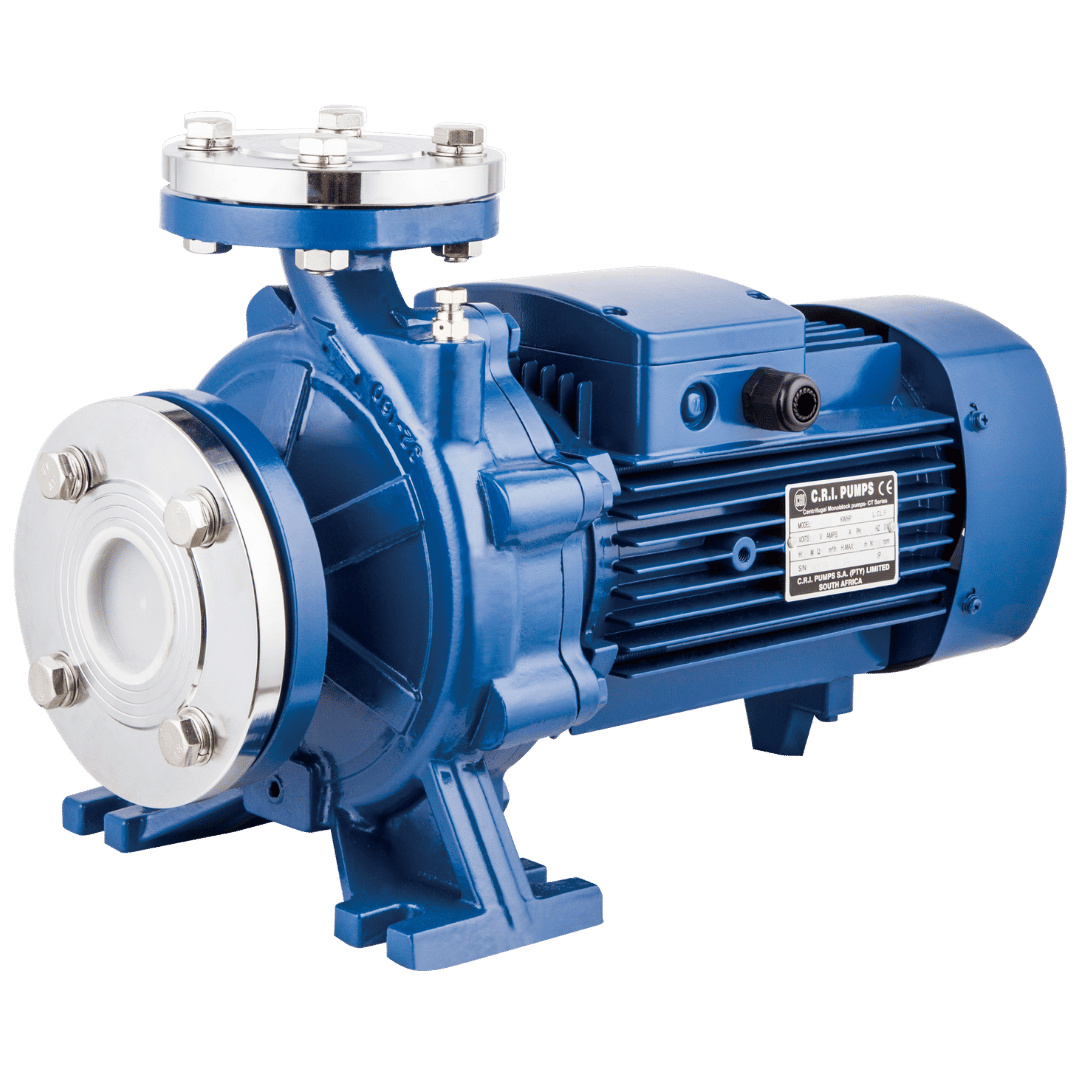

C.R.I. CT- Series pumps are horizontal single stage centrifugal monoblock type supplied with radial flow impeller for higher head and flow requirements. These pumps are rigid in construction and compact design. Centrifugal pumps are powered by a totally enclosed fan cooled motor. Monoblock construction eliminates loss of energy while transmitting the energy from the motor to pump. These pumps are available in both single phase and three phase power supply. Pump’s volute chamber and impeller are carefully designed to give the best hydraulic efficiency and suction lift characteristics. The back pull out design facilitates ease of maintenance. Single phase pumps are thermally protected. Few models are supplied with stainless steel construction.
Description
| Pump Model | Suc. X Del | Power | Flow (Q) | |||||||||||||||
| l/min | 0 | 100 | 150 | 250 | 300 | 400 | 450 | 600 | 700 | 800 | 900 | 1200 | 1400 | 1500 | ||||
| KW | HP | m³h | 0 | 6 | 9 | 15 | 18 | 24 | 27 | 36 | 42 | 48 | 54 | 72 | 84 | 90 | ||
| CTC-32/160B | 50×32 | 1,5 | 2 | Head (m) | 25 | 22,5 | 20,5 | 16,5 | 13 | |||||||||
| CTC-32/160A | 50×32 | 2,2 | 3 | 31 | 29,5 | 28,5 | 23 | 20 | 12 | |||||||||
| CTC-32/160 | 50×32 | 3 | 4 | 35 | 34,3 | 33 | 28,5 | 25,5 | 19 | 15 | ||||||||
| CTC-32/200A | 50×32 | 3 | 4 | 44,2 | 42 | 39,8 | 35 | 31 | 22 | 16 | ||||||||
| CTC-32/200 | 50×32 | 4 | 5,5 | 52 | 49 | 48 | 44,5 | 41 | 34 | 29,5 | ||||||||
| CTC-40/160A | 65×40 | 3 | 4 | 31,8 | 28 | 26 | 24,5 | 18,5 | 13 | |||||||||
| CTC-40/160 | 65×40 | 4 | 5,5 | 37 | 33 | 31 | 29 | 23 | 20 | 15 | ||||||||
| CTC-40/200A | 65×40 | 5,5 | 7,5 | 46 | 43 | 40 | 38 | 31 | 25 | |||||||||
| CTC-40/200 | 65×40 | 7,5 | 10 | 56 | 51,5 | 47 | 45 | 39 | 34 | 29 | ||||||||
| CTC-50/160A | 65×50 | 5,5 | 7,5 | 32 | 30 | 29 | 26 | 25 | 17 | 10 | ||||||||
| CTC-50/160 | 65×50 | 7,5 | 10 | 39 | 36 | 34 | 32 | 29 | 19 | 15 | ||||||||
| CTC-50/200B | 65×50 | 9,2 | 12,5 | 50,5 | 46 | 43,5 | 41,5 | 38,5 | 27,5 | 20 | ||||||||
| CTC-50/200A | 65×50 | 11 | 15 | 57 | 51,5 | 49 | 47 | 43 | 35 | 29 | 22 | |||||||
| CTC-50/200 | 65×50 | 15 | 20 | 61 | 55 | 53 | 52 | 50 | 39 | 30 | 25 | |||||||
Additional information
| Type | CTC 32-160 A 2.2KW 400V, CTC 32-160 3KW 400V, CTC 32-200 A 3KW 400V, CTC 32-200 4KW 400V, CTC 40-160 A 3KW 400V, CTC 40-160 4KW 400V, CTC 40/200 A 5.5KW 400V, CTC 40-200 7.5KW 400V, CTC 50-160 A 5.5KW 400V, CTC 50-160 7.5KW 400V, CTC 50-200 B 9.2KW 400V, CTC 50-200 A 11KW 400V, CTC 50-200 15KW 400V |
|---|
